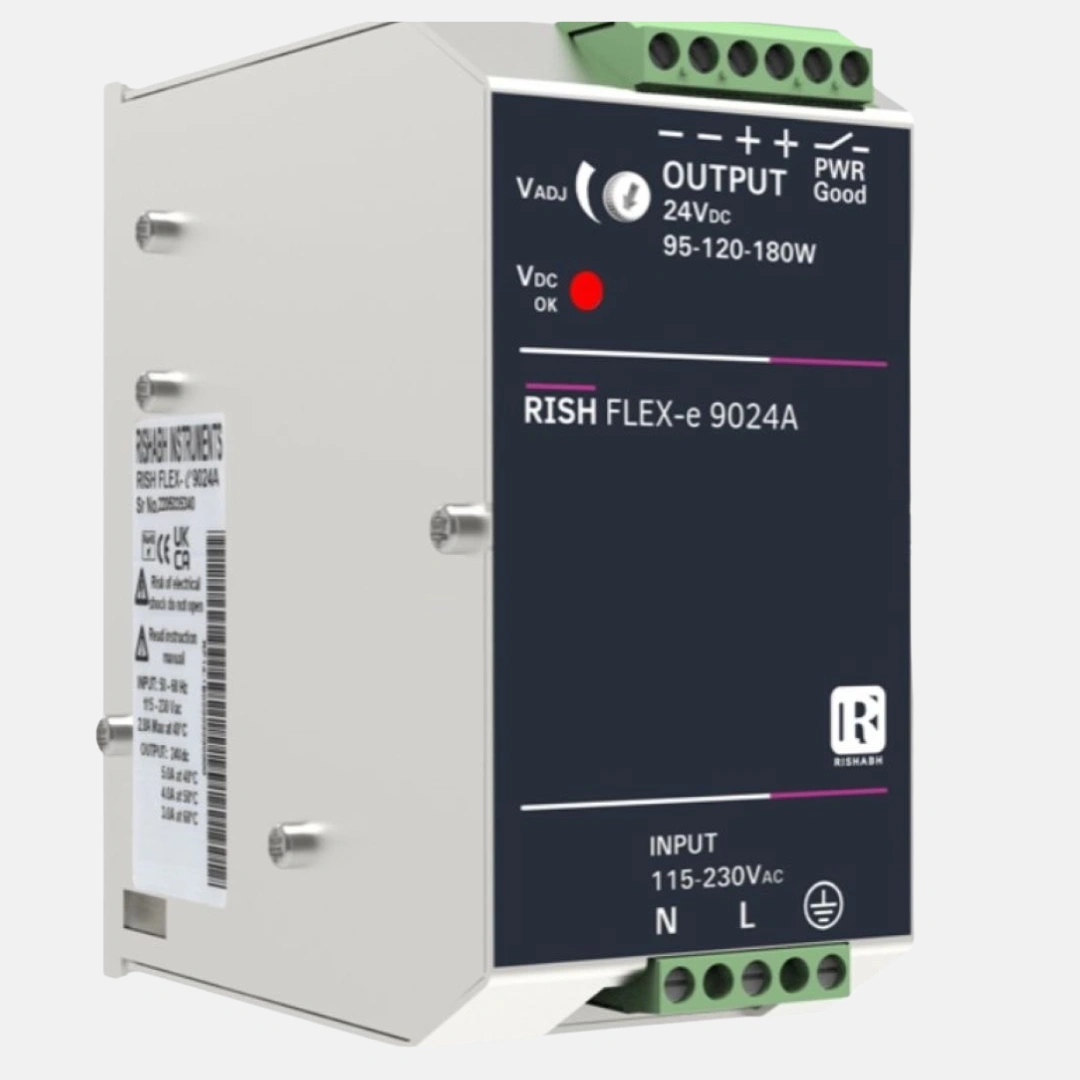

Input Voltage: Universal single-phase input: 85–264V AC or 125–350V DC.

Output Voltage: 24V DC with ±3% tolerance.

Output Current: Maximum 5A, delivering up to 120W of power.

Efficiency: High efficiency ≥87%, ensuring energy savings.

Protection Features: Includes short-circuit, overload, and overvoltage protections.

Mounting: DIN rail mountable with compact dimensions (W-H-D): 55 × 110 × 105 mm.

Operating Temperature: Suitable for environments ranging from -25°C to 70°C with derating.

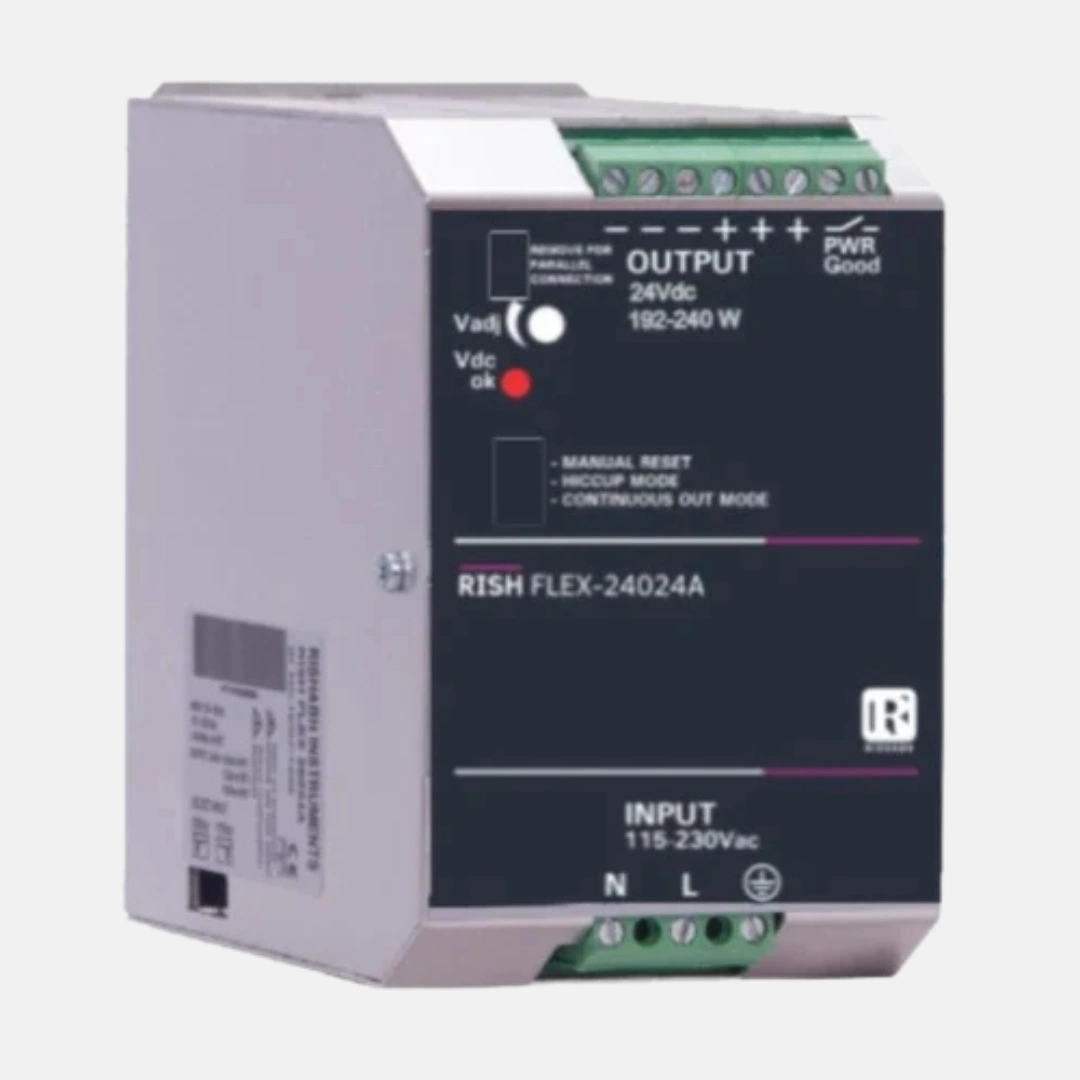

Input Voltage: 90–135V AC or 170–280V AC (single-phase).

Output Voltage: 24V DC with adjustable range of 22–27V DC.

Output Current: Maximum 10A, delivering up to 240W of power.

Efficiency: High efficiency of 91%.

Mounting Style: DIN rail mountable with compact dimensions (W-H-D): 72 × 115 × 135 mm.

Protection Features: Includes short-circuit, overload, and overvoltage protections.

Operating Temperature: Suitable for environments ranging from -25°C to 70°C with derating.

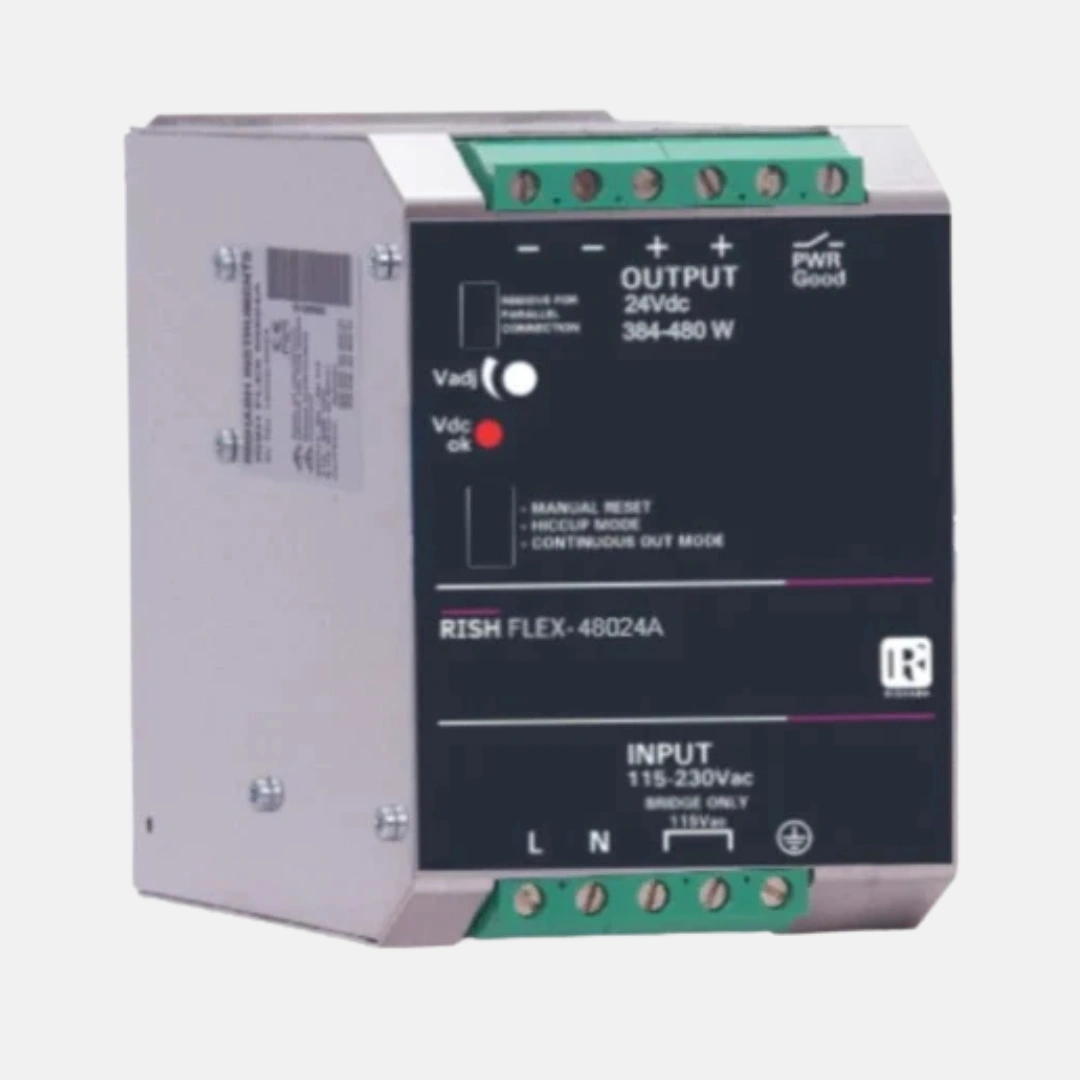

Input Voltage: 90–135V AC or 170–280V AC (single-phase).

Output Voltage: 24V DC with adjustable range of 22–27V DC.

Output Current: Maximum 20A, delivering up to 480W of power.

Efficiency: High efficiency of 92%.

Mounting Style: DIN rail mountable with compact dimensions (W-H-D): 85 × 120 × 140 mm.

Protection Features: Includes short-circuit, overload, and overvoltage protections.

Operating Temperature: Suitable for environments ranging from -25°C to 70°C with derating.

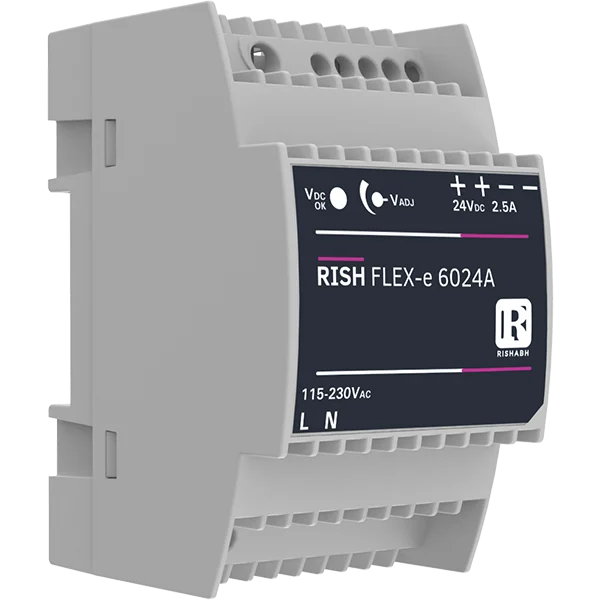

Input Voltage: Single-phase: 85–264V AC or 124–370V DC.

Output Voltage: 24V DC with ±3% tolerance.

Output Current: 2.5A continuous; 3.0A peak for 3 minutes at 60°C.

Efficiency: High efficiency ≥87%.

Mounting Style: DIN rail mountable with compact dimensions (W-H-D): 54 × 90 × 62 mm.

Protection Features: Includes short-circuit, overload, and overvoltage protections.

Warranty: 3-year warranty.

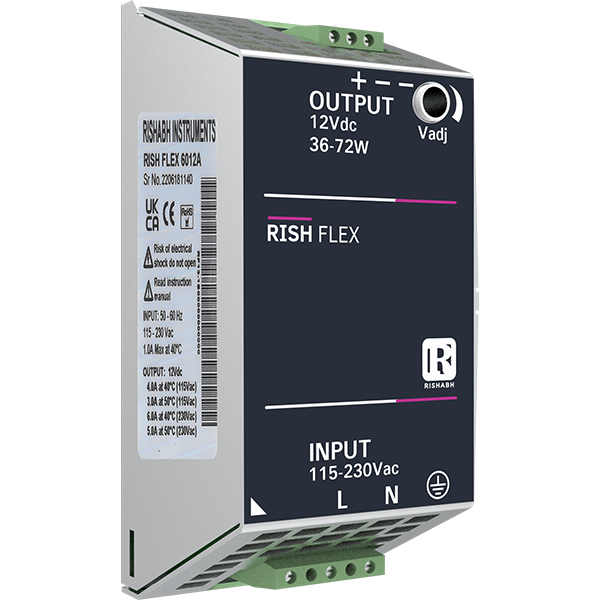

Input Voltage: 90–264V AC or 120–370V DC.

Output Voltage: 12V DC.

Output Current: 4A maximum.

Efficiency: 88%.

Mounting Style: DIN rail mountable; dimensions: 50 × 50 × 120 mm.

Protection Features: Overload, overvoltage, and short-circuit protection.

Operating Temperature: -25°C to 70°C with derating.
