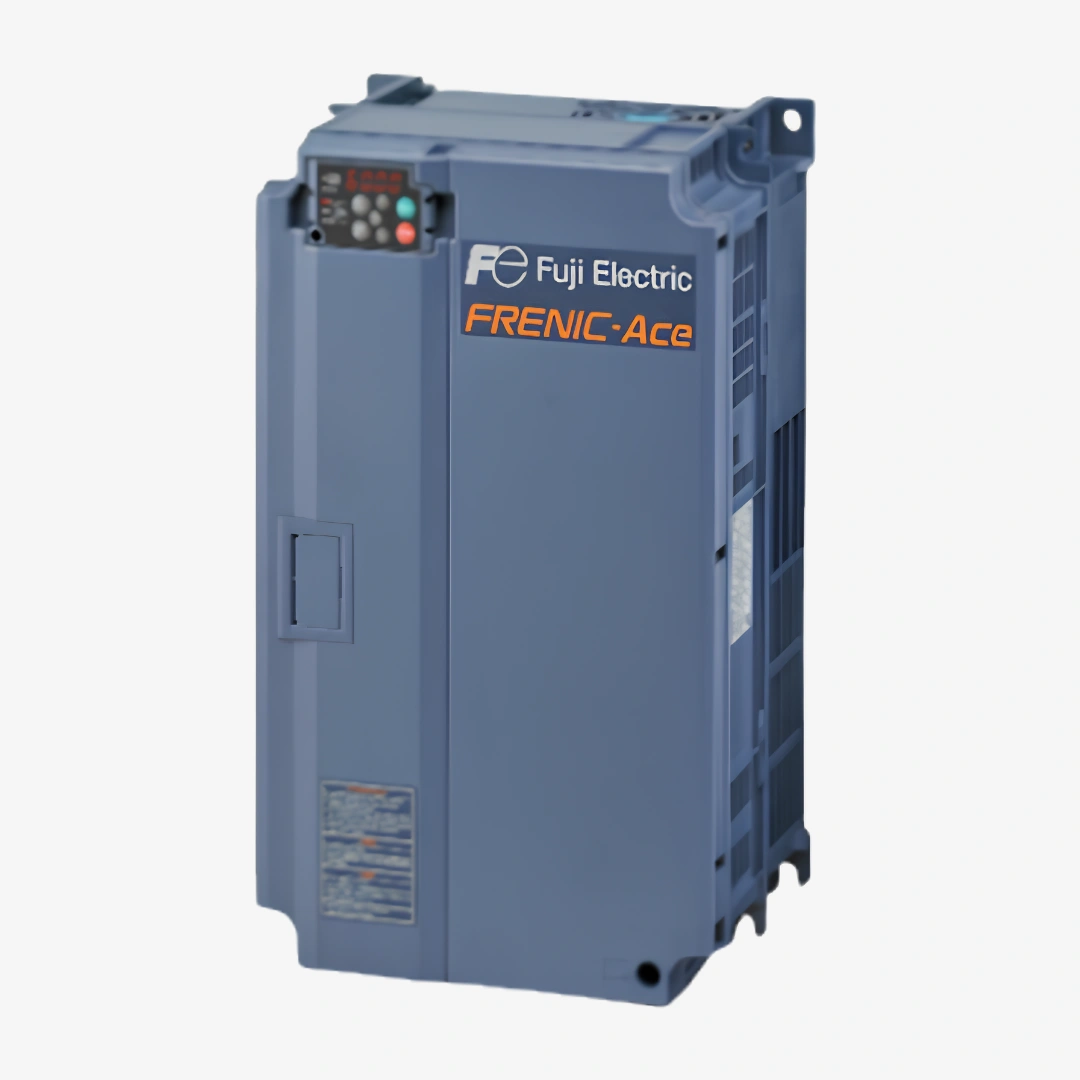

Frenic - ACE
Single Phase (0.1 KW - 2.2 KW)
Three Phase (0.4 KW – 315 KW)
- Starting torque: 200% for 0.5 sec 150% for 1 min
- Synchronous motor with sensorless vector control
- 1-channel on-board RS485 communications port
- Removable keypad
- Removable control terminal block board
- Digital Inputs: 7 (1 pulse input also)
- Digital Outputs: 2
- Relay outputs: 1
- Analog Inputs: 2
- Analog Outputs / FMP: 2
- Customizable Logic (200 Step)

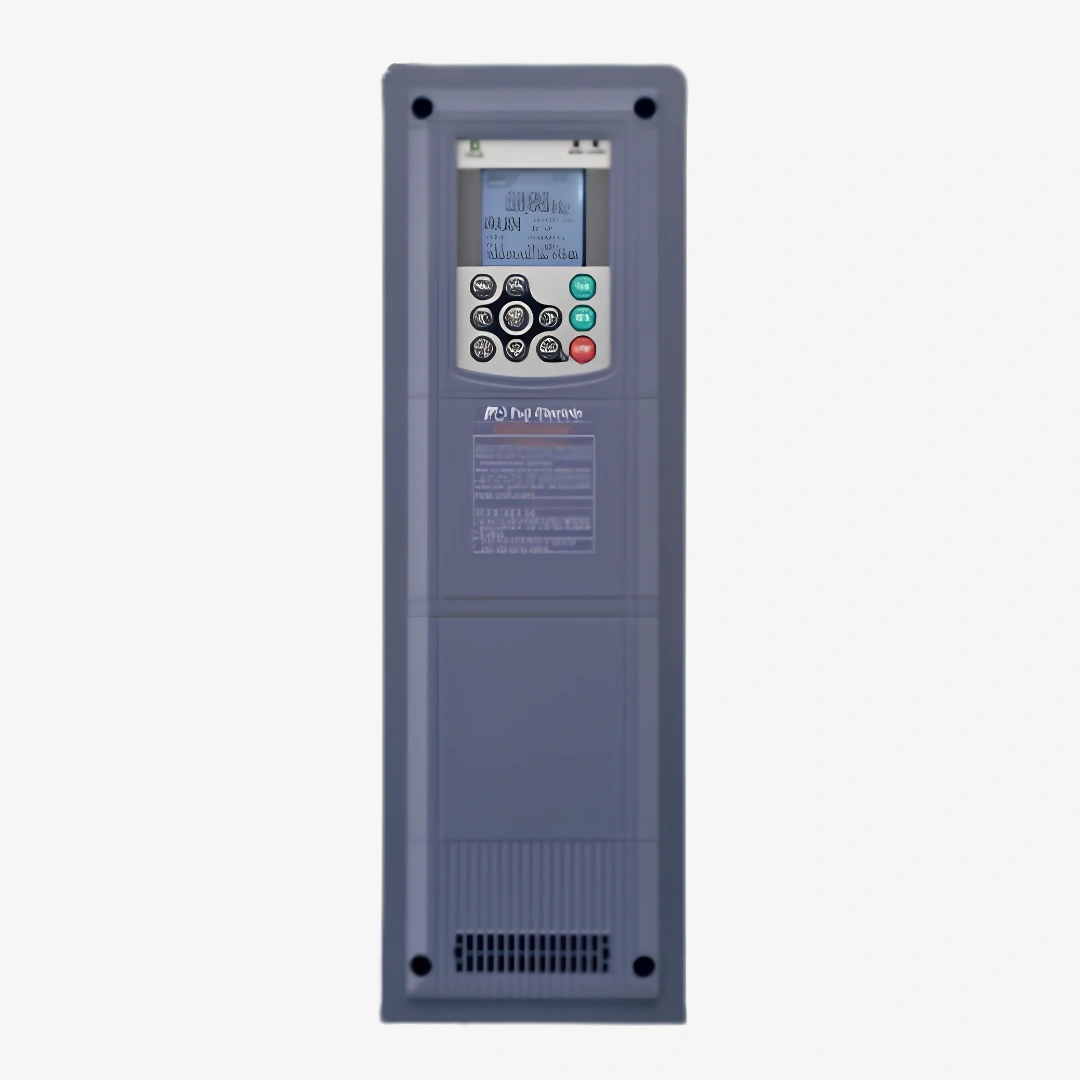

Frenic HVAC
Three Phase (0.4 KW – 710 KW)
Key Features:
- EMC filter
- Built in DC Choke
- Slim Body
- 4-PID Control functions
- FRENIC HVAC
- Energy Saving and Environment Friendly Drive
- Separate IP55 enclosure series
- Digital Inputs: 9 to 11
- Digital Outputs: 4
- Relay outputs: 2
- Analog Inputs : 3
- Analog Outputs: 2
Special Features:
- Optimum Control
- Linearization function
- Wet-bulb temperature
- presumption control
- Filter Clogging
- prevention function
- Fire mode

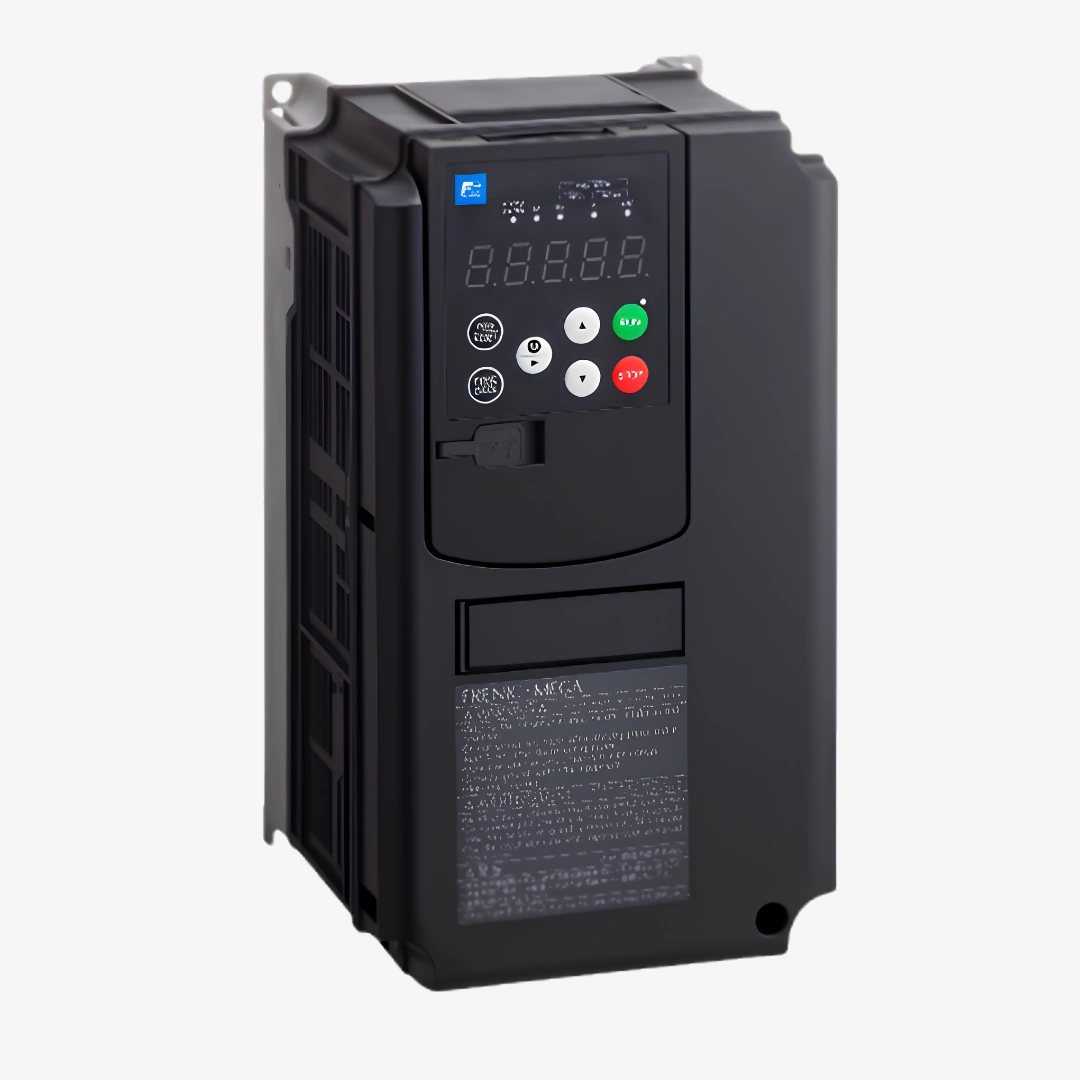

Frenic- Mega G2
Three Phase (0.4 KW – 630 KW)
Key Features
- Starting Torque: 200% for 3 sec, 150% for 1 Min
- Ideal for highly accurate control
- 260 steps customize logic
- Quick reaction to the Impact load
- Servo lock function and orientation function
- Digital Inputs: 11 (1 pulse input)
- Digital Outputs: 4
- Relay outputs: 2
- Analog Inputs: 3
- Analog Outputs: 2+1 pulse output
Available with LCD keypad
- USB port
- SD card slot
- Clock function
- Water resistant
- Built-in Bluetooth
- 19 different language display

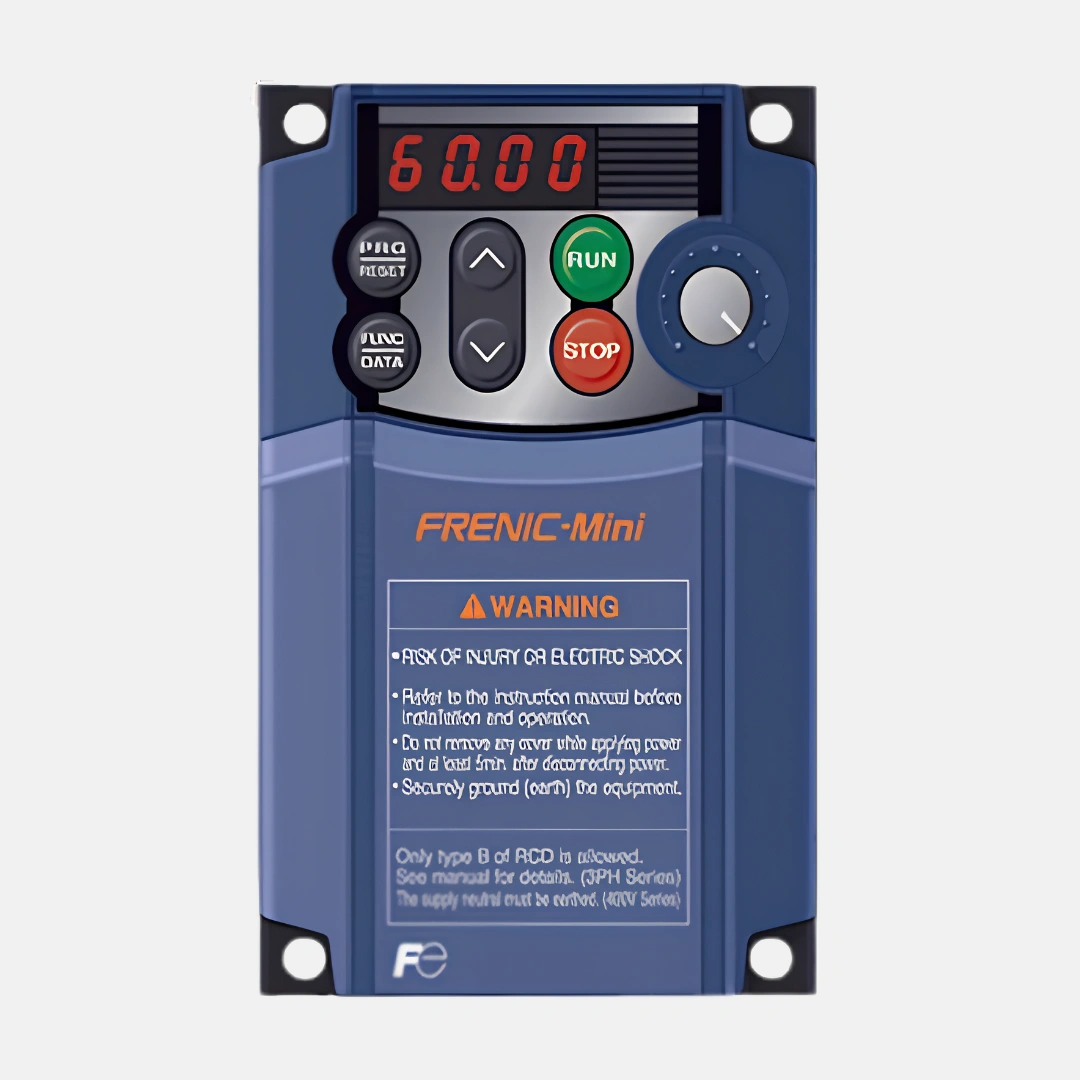

Frenic New- Mini
Single Phase (0.1 KW - 2.2 KW)
Three Phase (0.4 KW – 15 KW)
Key Features
- Starting torque: 200% for 0.5 sec 150% for 1 min
- Stable Operation at low speed
- PID Control Function
- Digital Inputs: 5
- Digital Outputs: 1
- Relay Outputs: 1
- Analog Inputs: 2
- Analog Outputs: 1
- In-Built RS485 port
